TDE

PRH SEALS

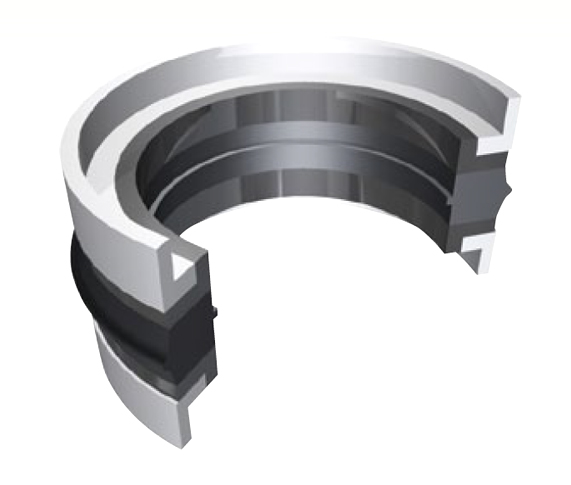

The TDE seal is designed for use in double acting applications incorporating two elements. The central part is produced in reinforced rubber fabric able to operate in conditions where abrasion and wear occur. The guide rings are produced in Acetal Resin and minimise all possible extrusion to take place.
GENERAL FEATURES
  • Ease of mounting
  • High abrasion resistance
  • High extrusion resistance
  • Low deformation value
WORKING CONDITIONS
  • Pressure: 500 bar
  • Speed: 0,5 m/s
  • Temperature: -30°c + 110°c
PRH SEALS

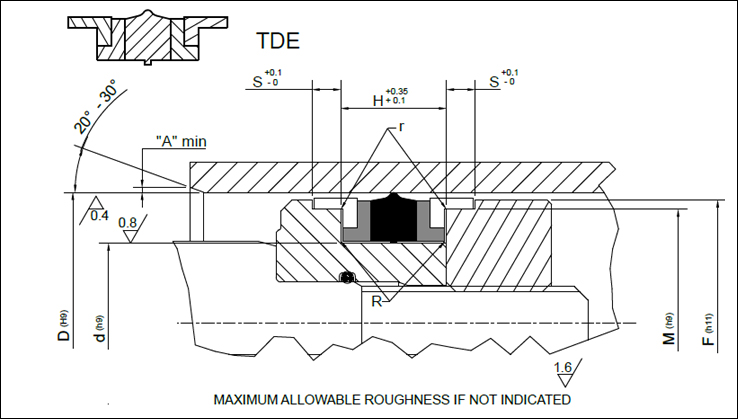

NS RIF. ALTRI RIF. DIMENSIONI SEDI / HOUSING DIMENSIONS
Our ref. Other ref. D d H S M F
TDE 1000 098047 25.00 12.00 12.40 6.35 21.45 24.00
TDE 1001 118066 30.00 17.00 15.40 6.35 26.50 29.00
TDE 1002 137086 35.00 22.00 15.40 6.35 31.40 33.70
TDE 1003 157094 40.00 24.00 18.40 6.35 35.40 38.70
TDE 1004 177114 45.00 29.00 18.40 6.35 40.40 43.70
TDE 1004/1 196118 50.00 30.00 25.40 6.35 44.30 48.30
TDE 1005 196133 50.00 34.00 18.40 6.35 45.40 48.70
TDE 1006 216153 55.00 39.00 18.40 6.35 50.40 53.70
TDE 1007 236173/1 60.00 44.00 18.50 6.35 55.40 58.70
TDE 1007/1 236173/2 60.00 44.00 20.00 6.35 55.40 58.70
TDE 1008 248185 63.00 47.00 19.40 6.35 58.40 61.65
TDE 1009 255196 65.00 50.00 18.40 6.35 60.40 63.70
TDE 1010 275196 70.00 50.00 22.40 6.35 64.20 68.30
TDE 1011 295216 75.00 55.00 22.40 6.35 69.20 73.30
TDE 1012 295220 75.00 56.00 24.40 6.35 69.20 73.30
TDE 1012/1 300225 76.20 57.15 22.40 6.35 70.50 74.50
TDE 1013 314236 80.00 60.00 22.40 6.35 74.20 78.30
TDE 1014 326248 83.00 63.00 22.40 6.35 76.16 81.30
TDE 1015 334255 85.00 65.00 22.40 6.35 79.20 83.35
TDE 1016 354275 90.00 70.00 22.40 6.35 84.15 88.30
TDE 1017 374295 95.00 75.00 22.40 6.35 89.15 93.30
TDE 1018 393295 100.00 75.00 22.40 6.35 93.15 98.05
TDE 1019 393314 100.00 80.00 25.40 6.35 94.15 98.31
TDE 1019/1 400325 101.60 82.55 24.21 6.35 95.78 99.90
TDE 1020 413314 105.00 80.00 22.40 6.35 98.10 103.00
TDE 1021 433334/1 110.00 85.00 22.40 6.35 103.10 108.00
TDE 1022 433334 110.00 85.00 25.40 6.35 103.10 108.00
TDE 1023 433354 110.00 90.00 25.40 6.35 104.15 108.30
TDE 1023/1 450350 114.30 88.90 32.15 6.35 107.42 113.00
TDE 1024 452354 115.00 90.00 22.40 6.35 108.10 113.00
TDE 1025 472374 120.00 95.00 22.40 6.35 113.10 118.00
TDE 1026 472393 120.00 100.00 25.40 6.35 114.10 118.30
TDE 1027 492393 125.00 100.00 25.40 6.35 118.10 123.00
TDE 1028 492393/1 125.00 100.00 32.40 6.35 118.10 123.00
TDE 1029 492413 125.00 105.00 25.40 6.35 119.15 123.00
TDE 1029/1 500400 127.00 101.60 32.15 6.35 120.09 124.98
TDE 1030 511413 130.00 105.00 25.40 6.35 123.10 128.00
TDE 1031 531433 135.00 110.00 25.40 6.35 128.10 133.00
TDE 1032 551452 140.00 115.00 25.40 6.35 133.00 138.00
TDE 1033 551472 140.00 120.00 25.40 6.35 134.10 138.30
TDE 1034 570472 145.00 120.00 25.40 6.35 138.30 142.95
TDE 1035 590472 150.00 120.00 38.40 6.35 143.00 148.00
TDE 1036 590492 150.00 125.00 25.40 6.35 143.00 148.00
TDE 1037 610511 155.00 130.00 25.40 6.35 148.00 153.00
TDE 1038 629511 160.00 130.00 25.40 6.35 153.00 157.90
TDE 1038/1 638511 162.00 130.00 25.40 6.35 155.00 159.00
TDE 1039 669551 170.00 140.00 25.40 6.35 162.95 167.87
TDE 1039/1 700600 177.80 152.40 32.15 6.35 170.80 175.75
TDE 1040 708629 180.00 160.00 31.40 6.35 172.95 177.87
TDE 1041 708590 180.00 150.00 35.40 6.35 172.95 177.87
TDE 1042 748629 190.00 160.00 35.40 6.35 482.93 187.87
TDE 1043 787669 200.00 170.00 35.40 6.35 192.96 197.84
TDE 1044 826708 210.00 180.00 32.40 6.35 202.72 207.87
TDE 1045 866748 220.00 190.00 35.40 6.35 212.70 217.90
TDE 1046 984866 250.00 220.00 35.40 6.35 242.90 247.86
TDE 1047 17711614/AE 450.00 410.00 45.00 447.50
TDE 1048/P 160.00 135.00 32.00
TDE 1049/H 140.00 127.00 26.00
TDE 1050/M 110.00 85.00 27.00
