TPM

PRH SEALS

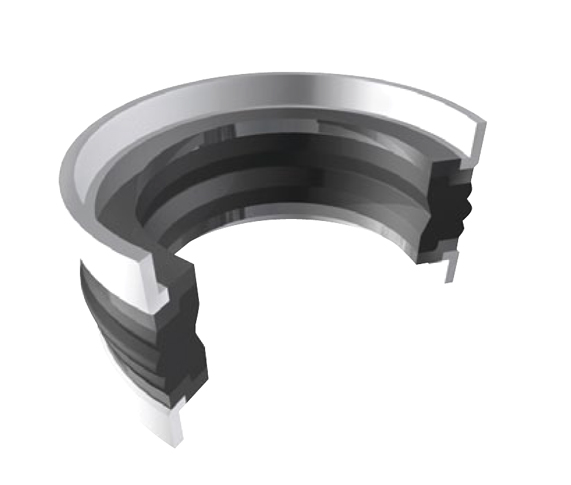

Adouble-acting seal for one piece piston, the TPM represents an inexpensive sealing solution that guarantees excellent resistance where medium pressure is present. Composed of five elements (central part in NBR, two support rings in thermoplastic material and two acetalic guide rings), it’s available in two versions (TPM and TPM/E) different only in the profile of the main sealing element in NBR.

The unique combination of material in which this seal is produced guarantee low friction were high pressure is present. In the presence of harsh working conditions this sealing element is also available in special material able to withstand high temperatures.
GENERAL FEATURES
  • Ease of mounting
  • High abrasion resistance
  • High extrusion resistance
  • Low deformation value
WORKING CONDITIONS
  • Pressure: = 300 bar
  • Speed: = 0,5 m/s
  • Temperature: -30°c + 110°c
PRH SEALS

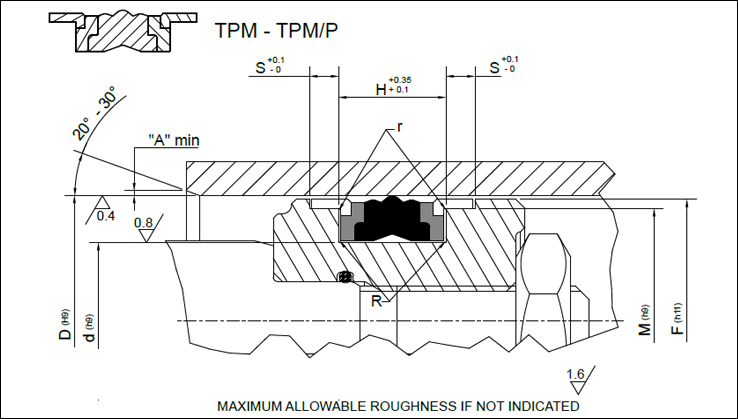

NS RIF. ALTRI RIF. DIMENSIONI SEDI / HOUSING DIMENSIONS
Our ref. Other ref. D d H S h M F
TPM 9000* 098059 25.00 15.00 12.50 4.00 5.00 22.00 24.00
TPM/E 9000* 098059 25.00 15.00 12.50 4.00 5.00 22.00 24.00
TPM 9001 098059 25.00 15.00 16.40 6.35 5.00 21.45 23.50
TPM/E 9001 098059 25.00 15.00 16.40 6.35 5.00 21.45 23.50
TPM 9002* 098066 25.00 17.00 10.00 4.00 5.00 22.00 24.00
TPM/E 9002* 098066 25.00 17.00 10.00 4.00 5.00 22.00 24.00
TPM 9003 118066 30.00 17.00 15.40 6.35 5.00 26.50 28.50
TPM/E 9003 118066 30.00 17.00 15.40 6.35 5.00 26.50 28.50
TPM 9004* 125086 32.00 22.00 12.50 4.00 5.00 29.00 31.00
TPM/E 9004* 125086 32.00 22.00 12.50 4.00 5.00 29.00 31.00
TPM 9005 125086 32.00 22.00 16.40 6.35 5.00 28.50 30.50
TPM/E 9005 125086 32.00 22.00 16.40 6.35 5.00 28.50 30.50
TPM 9006* 125094 32.00 24.00 10.00 4.00 5.00 29.00 31.00
TPM/E 9006* 125094 32.00 24.00 10.00 4.00 5.00 29.00 31.00
TPM 9007 137098 35.00 25.00 16.40 6.35 5.00 31.40 33.50
TPM/E 9007 137098 35.00 25.00 16.40 6.35 5.00 31.40 33.50
TPM/P 9600 1500-1125 38.10 28.57 11.10 3.81 3.00 33.63 36.80
TPM 9012 157094 40.00 24.00 18.40 6.35 5.00 35.40 38.70
TPM/E 9012 157094 40.00 24.00 18.40 6.35 5.00 35.40 38.70
TPM 9009* 157118 40.00 30.00 12.50 4.00 5.00 37.00 39.00
TPM 9010 157118 40.00 30.00 12.50 4.00 5.00 36.00 39.00
TPM/E 9009* 157118 40.00 30.00 12.50 4.00 5.00 37.00 39.00
TPM/E 9010 157118 40.00 30.00 12.50 4.00 5.00 36.00 39.00
TPM 9008 157118 40.00 30.00 16.40 6.35 5.00 35.40 38.50
TPM/E 9008 157118 40.00 30.00 16.40 6.35 5.00 35.40 38.50
TPM 9011 157125 40.00 32.00 10.00 4.00 5.00 37.00 39.00
TPM/E 9011 157125 40.00 32.00 10.00 4.00 5.00 37.00 39.00
TPM/P 9601 1750-1125 44.45 28.57 19.05 6.35 5.00 39.87 43.12
TPM 9013 177114 45.00 29.00 18.40 6.35 5.00 40.40 43.70
TPM/E 9013 177114 45.00 29.00 18.40 6.35 5.00 40.40 43.70
TPM 9014 177137 45.00 35.00 16.40 6.35 5.00 40.40 43.50
TPM/E 9014 177137 45.00 35.00 16.40 6.35 5.00 40.40 43.50
TPM 9015 196133 50.00 34.00 18.40 6.35 5.00 45.41 48.70
TPM/E 9015 196133 50.00 34.00 18.40 6.35 5.00 45.41 48.70
TPM 9016* 196137 50.00 35.00 20.00 5.00 5.00 46.00 48.50
TPM/E 9016* 196137 50.00 35.00 20.00 5.00 5.00 46.00 48.50
TPM 9017* 196157 50.00 40.00 12.50 4.00 5.00 47.00 49.00
TPM/E 9017* 196157 50.00 40.00 12.50 4.00 5.00 47.00 49.00
TPM/P 9602 2000-1375 50.80 34.92 19.05 6.35 5.00 46.23 49.50
TPM/P 9603 2000-1625 50.80 41.27 11.10 3.81 3.00 46.27 49.20
TPM/P 9604 2125-1500 53.97 38.10 19.05 6.35 5.00 49.40 52.70
TPM 9018 216153 55.00 39.00 18.40 6.35 5.00 50.37 53.65
TPM/E 9018 216153 55.00 39.00 18.40 6.35 5.00 50.37 53.65
TPM 9019* 216177 55.00 45.00 12.50 4.00 5.00 52.00 54.00
TPM/E 9019* 216177 55.00 45.00 12.50 4.00 5.00 52.00 54.00
TPM 9020 236173 60.00 44.00 18.40 6.35 5.00 55.39 58.65
TPM/E 9020 236173 60.00 44.00 18.40 6.35 5.00 55.39 58.65
TPM 9020/1 236173/1 60.00 44.00 19.40 6.35 5.00 55.39 58.65
TPM/E 9020/1 236173/1 60.00 44.00 19.40 6.35 5.00 55.39 58.65
TPM/P 9605 2375-1750 60.33 44.45 19.05 6.35 5.00 55.73 58.98
TPM 9021 248185 63.00 47.00 18.40 6.35 5.00 58.39 61.63
TPM/E 9021 248185 63.00 47.00 18.40 6.35 5.00 58.39 61.63
TPM 9021/1 248185/1 63.00 47.00 19.40 6.35 5.00 58.39 61.63
TPM/E 9021/1 248185/1 63.00 47.00 19.40 6.35 5.00 58.39 61.63
TPM 9022* 248188 63.00 48.00 20.00 5.00 5.00 59.00 61.50
TPM/E 9022* 248188 63.00 48.00 20.00 5.00 5.00 59.00 61.50
TPM 9023* 248208 63.00 53.00 12.50 4.00 5.00 60.00 62.00
TPM/E 9023* 248208 63.00 53.00 12.50 4.00 5.00 60.00 62.00
TPM/P 9606 2500-1875 63.50 47.62 19.05 6.35 5.00 58.90 62.12
TPM/P 9607 2500-2000 63.50 50.80 14.90 6.35 3.00 58.90 62.12
TPM/P 9608 2500-2125 63.50 53.97 11.10 3.81 3.00 58.90 62.12
TPM 9024 255196 65.00 50.00 18.40 6.35 5.00 60.41 63.64
TPM/E 9024 255196 65.00 50.00 18.40 6.35 5.00 60.41 63.64
TPM/P 9609 2625-2000 66.67 50.80 19.05 6.35 5.00 62.10 65.27
TPM 9025 275196 70.00 50.00 22.40 6.35 6.00 64.18 68.34
TPM/E 9025 275196 70.00 50.00 22.40 6.35 6.00 64.18 68.34
TPM 9026* 275216 70.00 55.00 20.00 5.00 6.00 66.00 68.50
TPM/E 9026* 275216 70.00 55.00 20.00 5.00 6.00 66.00 68.50
TPM 9027 295216 75.00 55.00 22.40 6.35 6.00 69.18 73.32
TPM/E 9027 295216 75.00 55.00 22.40 6.35 6.00 69.18 73.32
TPM/P 9610 3000-2250 76.20 57.15 23.79 6.35 6.00 70.40 74.50
TPM 9028 314236 80.00 60.00 22.40 6.35 6.00 74.16 78.34
TPM/E 9028 314236 80.00 60.00 22.40 6.35 6.00 74.16 78.34
TPM 9029* 314236 80.00 60.00 25.00 6.35 6.00 75.00 78.00
TPM/E 9029* 314236 80.00 60.00 25.00 6.35 6.00 75.00 78.00
TPM 9030* 314255 80.00 65.00 20.00 5.00 6.00 76.00 78.50
TPM/E 9030* 314255 80.00 65.00 20.00 5.00 6.00 76.00 78.50
TPM 9031 334255 85.00 65.00 22.40 6.35 6.00 79.16 83.34
TPM/E 9031 334255 85.00 65.00 22.40 6.35 6.00 79.16 83.34
TPM 9032 334295 85.00 75.00 20.00 4.00 6.00 81.00 83.34
TPM/E 9032 334295 85.00 75.00 20.00 4.00 6.00 81.00 83.34
TPM 9032/1 338255 86.00 65.00 22.40 6.35 6.00 82.00 84.34
TPM/E 9032/1 338255 86.00 65.00 22.40 6.35 6.00 82.00 84.34
TPM/P 9611 3500-2750 88.90 69.85 23.79 6.35 6.00 83.08 87.22
TPM 9033/1 354275/1 90.00 70.00 21.00 6.35 6.00 84.15 88.31
TPM/E 9033/1 354275/1 90.00 70.00 21.00 6.35 6.00 84.15 88.31
TPM 9033 354275 90.00 70.00 22.40 6.35 6.00 84.15 88.31
TPM/E 9033 354275 90.00 70.00 22.40 6.35 6.00 84.15 88.31
TPM 9034 354295 90.00 75.00 20.00 5.00 6.00 86.00 88.50
TPM/E 9034 354295 90.00 75.00 20.00 5.00 6.00 86.00 88.50
TPM/E 9034/1 354323 92.00 82.00 12.50 6.00 88.00 90.50
TPM 9035 374295 95.00 75.00 22.40 6.35 6.00 89.15 93.31
TPM/E 9035 374295 95.00 75.00 22.40 6.35 6.00 89.15 93.31
TPM 9036 393295 100.00 75.00 22.40 6.35 6.00 93.14 98.05
TPM/E 9036 393295 100.00 75.00 22.40 6.35 6.00 93.14 98.05
TPM 9037* 393314 100.00 80.00 25.00 6.35 6.00 95.00 98.00
TPM/E 9037* 393314 100.00 80.00 25.00 6.35 6.00 95.00 98.00
TPM 9038* 393334 100.00 85.00 20.00 5.00 6.00 96.00 98.50
TPM/E 9038* 393334 100.00 85.00 20.00 5.00 6.00 96.00 98.50
TPM 9039 393338 100.00 86.00 20.00 5.00 6.00 96.00 98.50
TPM/E 9039 393338 100.00 86.00 20.00 5.00 6.00 96.00 98.50
TPM/P 9612 4000-3250 101.60 82.55 23.79 6.35 6.00 95.78 99.90
TPM 9040 413314 105.00 80.00 22.40 6.35 6.00 98.09 103.03
TPM/E 9040 413314 105.00 80.00 22.40 6.35 6.00 98.09 103.03
TPM/E 9040/1 413364 105.00 92.50 14.00 6.00 103.03
TPM 9040/1 417314 106.00 80.00 22.40 6.35 6.00 99.09 104.03
TPM/E 9040/2 417314 106.00 80.00 22.40 6.35 6.00 99.09 104.03
TPM 9041 433334 110.00 85.00 22.40 6.35 6.00 103.10 108.00
TPM/E 9041 433334 110.00 85.00 22.40 6.35 6.00 103.10 108.00
TPM 9042 433334/1 110.00 85.00 25.40 6.35 6.00 103.10 108.00
TPM/E 9042 433334/1 110.00 85.00 25.40 6.35 6.00 103.10 108.00
TPM 9043* 433354 110.00 90.00 25.30 6.40 6.00 104.10 108.30
TPM/E 9043* 433354 110.00 90.00 25.30 6.40 6.00 104.10 108.30
TPM 9044* 433374 110.00 95.00 20.00 5.00 6.00 105.00 108.00
TPM/E 9044* 433374 110.00 95.00 20.00 5.00 6.00 105.00 108.00
TPM 9045 452354 115.00 90.00 22.40 6.35 6.00 108.10 113.02
TPM/E 9045 452354 115.00 90.00 22.40 6.35 6.00 108.10 113.02
TPM 9046 472374 120.00 95.00 22.40 6.35 6.00 113.10 118.02
TPM/E 9046 472374 120.00 95.00 22.40 6.35 6.00 113.10 118.02
TPM 9046/1 480374 122.00 95.00 22.40 6.35 6.00 115.10 120.02
TPM/E 9046/1 480374 122.00 95.00 22.40 6.35 6.00 115.10 120.02
TPM 9047 492393 125.00 100.00 25.40 6.35 6.00 118.08 122.96
TPM/E 9047 492393 125.00 100.00 25.40 6.35 6.00 118.08 122.96
TPM 9048* 492393 125.00 100.00 32.00 10.00 6.00 119.00 123.00
TPM/E 9048* 492393 125.00 100.00 32.00 10.00 6.00 119.00 123.00
TPM 9051* 492413 125.00 105.00 25.00 6.35 6.00 120.00 123.00
TPM/E 9051* 492413 125.00 105.00 25.00 6.35 6.00 120.00 123.00
TPM 9049 492413 125.00 105.00 25.40 6.35 6.00 119.10 123.30
TPM/E 9049 492413 125.00 105.00 25.40 6.35 6.00 119.10 123.30
TPM/P 9613 5000-4000 127.00 101.60 32.15 6.35 6.00 120.09 124.98
TPM 9052 511413 130.00 105.00 25.30 6.35 6.00 123.10 128.00
TPM/E 9052 511413 130.00 105.00 25.30 6.35 6.00 123.10 128.00
TPM 9050 511413 130.00 105.00 25.40 9.52 6.00 122.60 127.50
TPM/E 9050 511413 130.00 105.00 25.40 9.52 6.00 122.60 127.50
TPM/E 9052/1 511433 130.00 110.00 25.30 6.40 6.00 124.10 128.30
TPM 9053 531433 135.00 110.00 25.40 9.52 6.00 127.60 132.50
TPM/E 9053 531433 135.00 110.00 25.40 9.52 6.00 127.60 132.50
TPM 9054 551452 140.00 115.00 25.40 9.52 6.00 132.60 137.50
TPM 9055 551452/1 140.00 115.00 25.40 6.35 6.00 133.00 138.00
TPM/E 9054 551452 140.00 115.00 25.40 9.52 6.00 132.60 137.50
TPM/E 9055 551452/1 140.00 115.00 25.40 6.35 6.00 133.00 138.00
TPM 9056* 551472 140.00 120.00 25.00 6.35 6.00 135.00 138.00
TPM/E 9056* 551472 140.00 120.00 25.00 6.35 6.00 135.00 138.00
TPM 9057 570472 145.00 120.00 25.40 9.52 7.00 137.60 142.50
TPM/E 9057 570472 145.00 120.00 25.40 9.52 7.00 137.60 142.50
TPM/E 9057/1 578469 147.00 119.00 25.40 9.52 7.00 139.60 144.50
TPM 9057/1 578480 147.00 122.00 25.40 9.52 7.00 139.60 144.50
TPM 9057/2 582484 148.00 123.00 25.40 9.52 7.00 140.60 145.50
TPM/E 9057/2 582484 148.00 123.00 25.40 9.52 7.00 140.60 145.50
TPM 9058 590492 150.00 125.00 25.40 9.52 7.00 142.60 147.50
TPM/E 9058 590492 150.00 125.00 25.40 9.52 7.00 142.60 147.50
TPM 9059* 590511 150.00 130.00 25.40 6.35 7.00 144.10 148.30
TPM/E 9059* 590511 150.00 130.00 25.40 6.35 7.00 144.10 148.30
TPM/P 9614 6000-5000 152.40 127.00 32.15 6.35 7.00 145.44 150.35
TPM 9060 610511 155.00 130.00 25.40 9.52 7.00 147.60 152.50
TPM/E 9060 610511 155.00 130.00 25.40 9.52 7.00 147.60 152.50
TPM 9064 629511 160.00 130.00 25.40 9.52 7.00 152.60 157.50
TPM 9065 629511/1 160.00 130.00 25.40 6.35 7.00 153.00 157.50
TPM/E 9064 629511 160.00 130.00 25.40 9.52 7.00 152.60 157.50
TPM/E 9065 629511/1 160.00 130.00 25.40 6.35 7.00 153.00 157.50
TPM 9062* 629511/2 160.00 130.00 32.00 10.00 7.00 154.00 158.00
TPM/E 9062* 629511/2 160.00 130.00 32.00 10.00 7.00 154.00 158.00
TPM 9061 629531 160.00 135.00 25.40 9.52 7.00 152.60 157.50
TPM 9061/1 629531/1 160.00 135.00 25.40 6.35 7.00 153.00 157.50
TPM/E 9061 629531 160.00 135.00 25.40 9.52 7.00 152.60 157.50
TPM 9061/2 629531/2 160.00 135.00 32.00 10.00 7.00 154.00 157.50
TPM 9063* 629551 160.00 140.00 25.00 6.35 7.00 155.00 158.00
TPM/E 9063* 629551 160.00 140.00 25.00 6.35 7.00 155.00 158.00
TPM 9066 649551 165.00 140.00 25.40 9.52 7.00 157.60 162.50
TPM/E 9066 649551 165.00 140.00 25.40 9.52 7.00 157.60 162.50
TPM 9066/1 669551 170.00 140.00 25.40 12.70 7.00 161.72 167.00
TPM/E 9066/1 669551 170.00 140.00 25.40 12.70 7.00 161.72 167.00
TPM 9067 669570 170.00 145.00 25.40 12.70 7.00 161.72 167.00
TPM/E 9067 669570 170.00 145.00 25.40 12.70 7.00 161.72 167.00
TPM 9068 688590 175.00 150.00 25.40 12.70 7.00 166.72 172.00
TPM/E 9068 688590 175.00 150.00 25.40 12.70 7.00 166.72 172.00
TPM/P 9615 7000-6000 177.80 152.40 32.15 6.35 7.00 170.80 175.75
TPM 9070 708590 180.00 150.00 35.40 6.35 8.00 172.95 177.00
TPM/E 9070 708590 180.00 150.00 35.40 6.35 8.00 172.95 177.00
TPM 9070/1 708590 180.00 150.00 36.00 12.50 8.00 172.95 177.00
TPM 9069 708610 180.00 155.00 25.40 12.70 8.00 171.72 177.00
TPM/E 9069 708610 180.00 155.00 25.40 12.70 8.00 171.72 177.00
TPM 9071 728629 185.00 160.00 25.40 12.70 8.00 176.72 182.00
TPM/E 9071 728629 185.00 160.00 25.40 12.70 8.00 176.72 182.00
TPM 9072 748649 190.00 165.00 25.40 12.70 8.00 181.72 187.00
TPM/E 9072 748649 190.00 165.00 25.40 12.70 8.00 181.72 187.00
TPM 9073 767699 195.00 170.00 25.40 12.70 8.00 186.72 192.00
TPM/E 9073 767699 195.00 170.00 25.40 12.70 8.00 186.72 192.00
TPM 9074 787669 200.00 170.00 35.40 6.35 8.00 193.00 198.00
TPM/E 9074 787669 200.00 170.00 35.40 6.35 8.00 193.00 198.00
TPM 9075* 787669/1 200.00 170.00 36.00 12.50 8.00 192.00 197.00
TPM/E 9075* 787669/1 200.00 170.00 36.00 12.50 8.00 192.00 197.00
TPM 9076 787688 200.00 175.00 25.40 12.70 8.00 191.62 197.00
TPM/E 9076 787688 200.00 175.00 25.40 12.70 8.00 191.62 197.00
TPM 9077 826728 210.00 185.00 25.40 12.70 8.00 201.62 207.00
TPM/E 9077 826728 210.00 185.00 25.40 12.70 8.00 201.62 207.00
TPM 9078 866748 220.00 190.00 35.40 6.35 8.00 212.70 217.00
TPM/E 9078 866748 220.00 190.00 35.40 6.35 8.00 212.70 217.00
TPM 9079 866767 220.00 195.00 25.40 12.70 8.00 211.62 217.00
TPM/E 9079 866767 220.00 195.00 25.40 12.70 8.00 211.62 217.00
TPM 9080 886787 225.00 200.00 25.40 12.70 8.00 216.62 222.00
TPM/E 9080 886787 225.00 200.00 25.40 12.70 8.00 216.62 222.00
TPM 9081 905807 230.00 205.00 25.40 12.70 8.00 221.62 227.00
TPM/E 9081 905807 230.00 205.00 25.40 12.70 8.00 221.62 227.00
TPM 9082 944846 240.00 215.00 25.40 12.70 8.00 231.62 237.00
TPM/E 9082 944846 240.00 215.00 25.40 12.70 8.00 231.62 237.00
TPM 9084 984866 250.00 220.00 35.40 6.35 8.00 242.90 247.00
TPM/E 9084 984866 250.00 220.00 35.40 6.35 8.00 242.90 247.00
TPM 9085* 984866/1 250.00 220.00 36.00 12.50 8.00 242.00 247.00
TPM/E 9085* 984866/1 250.00 220.00 36.00 12.50 8.00 242.00 247.00
TPM 9083* 984886 250.00 225.00 25.40 12.70 8.00 241.62 247.00
TPM/E 9083* 984886 250.00 225.00 25.40 12.70 8.00 241.62 247.00
TPM 9085/1 1000882 254.00 224.00 35.40 12.70 8.00 246.00 251.00
TPM/E 9085/1 1000882 254.00 224.00 35.40 12.70 8.00 246.00 251.00
TPM 9086/1 1024925/1 260.00 235.00 25.40 12.70 8.00 252.90 257.00
TPM 9086 1024925 260.00 235.00 35.10 12.70 8.00 252.90 257.00
TPM/E 9086 1024925 260.00 235.00 35.40 12.70 8.00 252.90 257.00
TPM 9086/2 1062965 270.00 245.00 35.40 12.70 8.00 252.90 257.00
TPM 9087* 1102984 280.00 250.00 35.40 9.52 8.00 272.90 277.00
TPM/E 9087* 1102984 280.00 250.00 35.40 9.52 8.00 272.90 277.00
TPM 9088 12591141 320.00 290.00 35.40 9.52 8.00 312.40 317.00
TPM/E 9088 12591141 320.00 290.00 35.40 9.52 8.00 312.40 317.00
TPM 9089* 12591141/1 320.00 290.00 36.00 12.70 8.00 312.00 317.00
TPM/E 9089* 12591141/1 320.00 290.00 36.00 12.70 8.00 312.00 317.00
