TPS/T & TPS/G

PRH SEALS

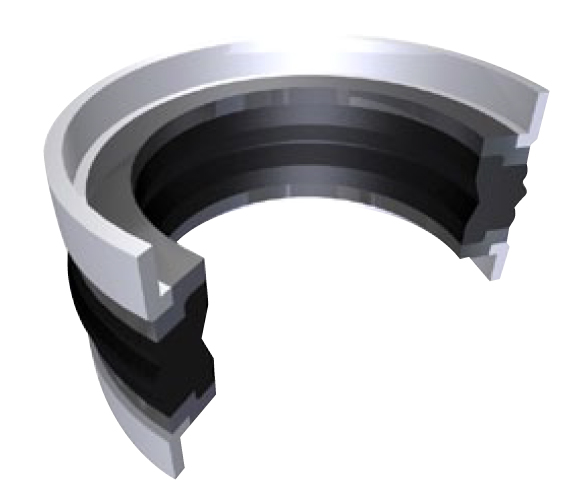

Double acting piston seal TPS incorporates characteristics such as excellent sealing on one piece piston applied in hydraulic cylinders. At the time the TPS offers an inexpensive sealing solution that finds it’s optimal working conditions in medium to high pressure yet simplifies the wear placed on the metal parts. Available in two versions TPS/G and TPS/T different only in the composition of material in the central sealing element. The TPS/G is composed of 5 elements (central part in NBR, two support rings in thermoplastic material, and two acetalic guide rings) while the TPS/T version is formed of three components with the central sealing element in NBR/fabric. The combination of high quality materials in which these products are manufactured guarantee low friction under conditions of high pressure and upon request may be produced in special material adapted to work under high temperatures.
GENERAL FEATURES
  • Ease of mounting
  • High abrasion resistance
  • High extrusion resistance
  • Low deformation value
WORKING CONDITIONS
  • Pressure:
  • Speed:
  • Temperature:
TIPO G
300 bar
0,5 m/s
-30°c +110°c
TIPO T
350 bar
0,8 m/s
-30°c +110°c
PRH SEALS

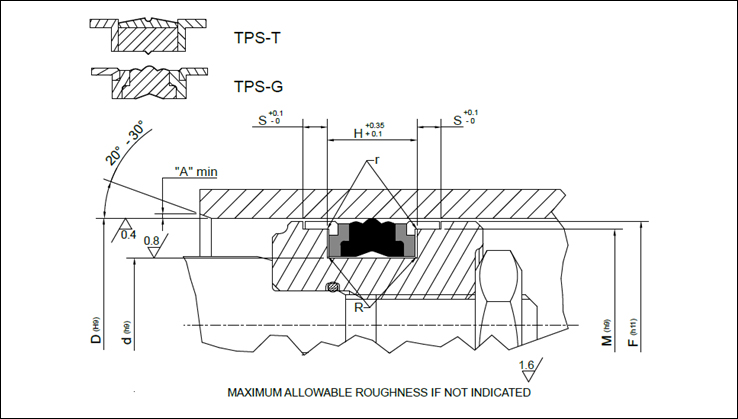

NS RIF. ALTRI RIF. DIMENSIONI SEDI / HOUSING DIMENSIONS
Our ref. Other ref. D d H S h M F
TPS 9501 098066 25.00 17.00 13.50 3.20 6.00 21.00 24.40
TPS 9502 118086 30.00 22.00 13.50 3.20 6.00 26.00 29.40
TPS 9503 125094 32.00 24.00 15.50 3.20 6.00 28.00 31.40
TPS 9504 137106 35.00 27.00 15.50 3.20 6.00 31.00 34.40
TPS 9505 157125 40.00 32.00 15.50 3.20 6.00 36.00 39.40
TPS 9506 177145 45.00 37.00 15.50 3.20 6.00 41.00 44.40
TPS 9507 196149 50.00 38.00 20.50 4.20 6.00 46.00 49.40
TPS 9507/1 216175 55.00 43.00 20.50 4.20 6.00 51.00 54.90
TPS 9508 236188 60.00 48.00 20.50 4.20 6.00 56.00 59.40
TPS 9509 248200 63.00 51.00 20.50 4.20 6.00 59.00 62.40
TPS 9509/1 255208 65.00 53.00 20.50 4.20 6.00 61.00 64.40
TPS 9510 275228 70.00 58.00 20.50 4.20 6.00 66.00 69.40
TPS 9510/1 295248 75.00 63.00 20.50 4.20 6.00 71.00 74.40
TPS 9511 314259 80.00 66.00 22.50 5.20 6.00 76.00 79.40
TPS 9511/1 334279 85.00 71.00 22.50 5.20 6.00 81.00 84.40
TPS 9512 354299 90.00 76.00 22.50 5.20 6.00 86.00 89.40
TPS 9513 393338 100.00 86.00 22.50 5.20 6.00 96.00 99.40
TPS 9514 433377 110.00 96.00 22.50 5.20 6.00 106.00 109.40
TPS 9515 472417 120.00 106.00 22.50 5.20 6.00 116.00 119.40
TPS 9516 492425 125.00 108.00 26.50 7.20 6.00 121.00 124.40
TPS 9516/1 511445 130.00 113.00 26.50 7.20 6.00 126.00 129.40
TPS 9516/2 531464 135.00 118.00 26.50 7.20 6.00 131.00 134.40
TPS 9517 551480 140.00 123.00 26.50 7.20 6.00 136.00 139.40
TPS 9518 590523 150.00 133.00 26.50 7.20 6.00 146.00 149.40
TPS 9519 629562 160.00 143.00 26.50 7.20 6.00 156.00 159.40
TPS 9520 708641 180.00 163.00 26.50 7.20 6.00 176.00 179.40
TPS 9521 787708 200.00 180.00 31.50 9.20 6.00 196.00 199.40
TPS 9522 866787 220.00 200.00 31.50 9.20 6.00 216.00 219.40
TPS 9523 984905 250.00 230.00 31.50 9.20 6.00 246.00 249.40
