TTD

PRH SEALS

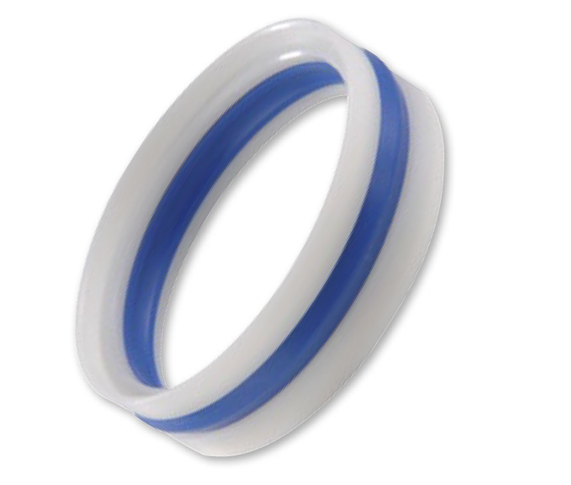

TTD seals are designed for double acting hydraulic pistons and is composed of three elements, two guide rings in Acetal Resin and a sealing ring in Polyurethane “Tecnolan”. The TTD range was created for groove applications ISO 6547.
GENERAL FEATURES
  • Ease of mounting
  • High abrasion resistance
  • High extrusion resistance
  • Low deformation value
WORKING CONDITIONS
  • pressure: 250/400 bar
  • speed: 0,5 m/s
  • temperature: -40°c to + 110°c
PRH SEALS

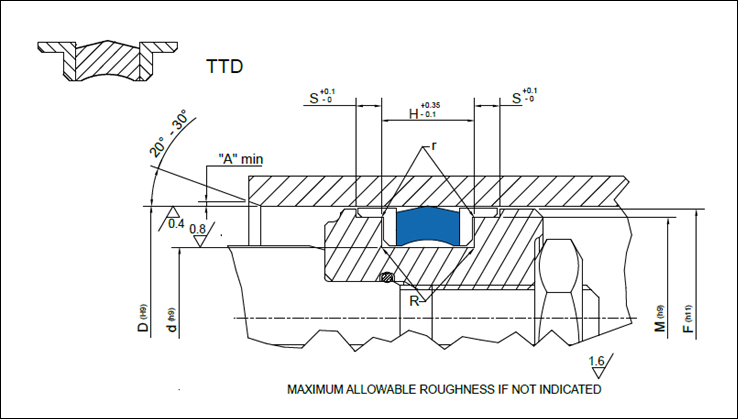

TIPI RIFERIMENTO DIMENSIONI SEDI / Housing dimensions
Type Reference D d F M H S
TTD 25-17-10 25.00 17.00 24.00 22.00 10.00 4.00
TTD 32-24-10 32.00 24.00 31.00 29.00 10.00 4.00
TTD 40-32-10 40.00 32.00 39.00 37.00 10.00 4.00
TTD 50-40-12,5 50.00 40.00 49.00 47.00 12.50 4.00
TTD 63-53-12,5 63.00 53.00 62.00 60.00 12.50 4.00
TTD 70-60-12,5 70.00 60.00 69.00 67.00 12.50 4.00
TTD 80-70-12,5 80.00 70.00 79.00 77.00 12.50 4.00
TTD 90-80-12,5 90.00 80.00 88.50 86.00 12.50 5.00
TTD 100-90-12,5 100.00 90.00 98.50 96.00 12.50 5.00
