TTO

PRH SEALS

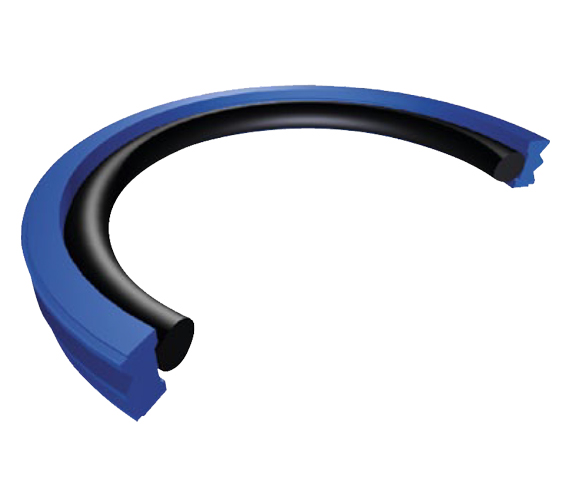

The TTO is a double acting piston seal composed of two elements: Polyurethane “Tecnolan” provides the seal with characteristics such as high elasticity, low deformation and excellent abrasion resistance, the O-Ring in NBR provides this particular combination with the possibility to work in numerous applications.
GENERAL FEATURES
  • Ease of mounting
  • High abrasion resistance
  • High extrusion resistance
  • Low deformation value
WORKING CONDITIONS
  • pressure: 400 bar
  • speed: 0,5 m/s
  • temperature: -30°c + 110°c
PRH SEALS

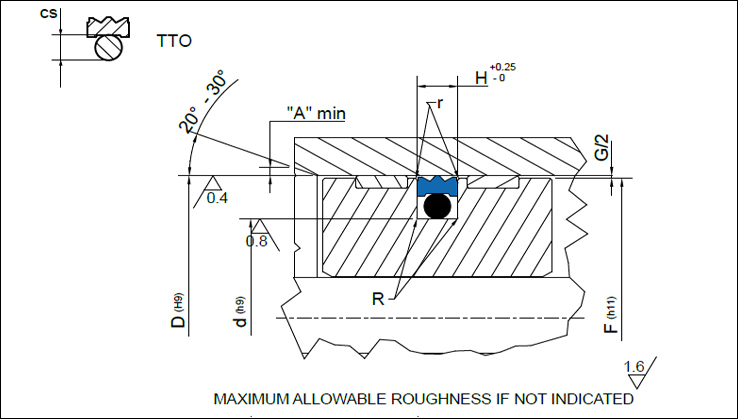

NS RIF. DIMENSIONI SEDI / HOUSING DIMENSIONS
Our ref. D d L B
TTO 15 15.00 7.50 3.20 3.00
TTO 16 16.00 8.50 3.20 3.00
TTO 20 20.00 12.50 3.20 3.00
TTO 25 25.00 14.00 4.20 3.00
TTO 25/1 25.00 17.50 3.20 3.00
TTO 30 30.00 22.50 3.20 3.00
TTO 32 32.00 21.00 4.20 3.00
TTO 32/1 32.00 24.50 3.20 3.00
TTO 35 35.00 27.50 3.20 3.00
TTO 36 36.00 28.50 3.20 3.00
TTO 38 38.00 30.50 3.20 3.00
TTO 40 40.00 24.50 6.30 3.50
TTO 40/1 40.00 29.00 4.20 3.50
TTO 42 42.00 31.00 4.20 3.50
TTO 45 45.00 29.50 6.30 3.50
TTO 45/1 45.00 34.00 4.20 3.50
TTO 48 48.00 37.00 4.20 3.50
TTO 50 50.00 34.50 6.30 3.50
TTO 50/1 50.00 39.00 4.20 3.50
TTO 55 55.00 39.50 6.30 3.50
TTO 55/1 55.00 44.00 4.20 3.50
TTO 60 60.00 44.50 6.30 3.50
TTO 60/1 60.00 49.00 4.20 3.50
TTO 63 63.00 47.50 6.30 3.50
TTO 63/1 63.00 52.00 4.20 3.50
TTO 65 65.00 49.50 6.30 3.50
TTO 65/1 65.00 54.00 4.20 3.50
TTO 70 70.00 54.50 6.30 3.50
TTO 70/1 70.00 59.00 4.20 3.50
TTO 75 75.00 59.50 6.30 3.50
TTO 75/1 75.00 64.00 4.20 3.50
TTO 80 80.00 64.50 6.30 3.50
TTO 80/1 80.00 69.00 4.20 3.50
TTO 85 85.00 69.50 6.30 3.50
TTO 90 90.00 74.50 6.30 3.50
TTO 95 95.00 79.50 6.30 3.50
TTO 100 100.00 84.50 6.30 3.50
TTO 105 105.00 89.50 6.30 3.50
TTO 110 110.00 94.50 6.30 3.50
TTO 120 120.00 104.50 6.30 3.50
TTO 125 125.00 109.50 6.30 3.50
TTO 127 127.00 111.50 6.30 3.50
TTO 130 130.00 114.50 6.30 3.50
TTO 130/1 130.00 99.00 8.10 3.50
TTO 135 135.00 114.00 8.10 4.00
TTO 140 140.00 119.00 8.10 4.00
TTO 145 145.00 124.00 8.10 4.00
TTO 150 150.00 129.00 8.10 4.00
TTO 160 160.00 139.00 8.10 4.00
TTO 170 170.00 149.00 8.10 4.00
TTO 180 180.00 159.00 8.10 4.00
TTO 185 185.00 164.00 8.10 4.00
TTO 190 190.00 169.00 8.10 4.00
TTO 200 200.00 179.00 8.10 4.00
TTO 210 210.00 189.00 8.10 4.00
TTO 220 220.00 199.00 8.10 4.00
TTO 230 230.00 209.00 8.10 4.00
TTO 240 240.00 219.00 8.10 4.00
TTO 250 250.00 229.00 8.10 4.00
