TTQ

PRH SEALS

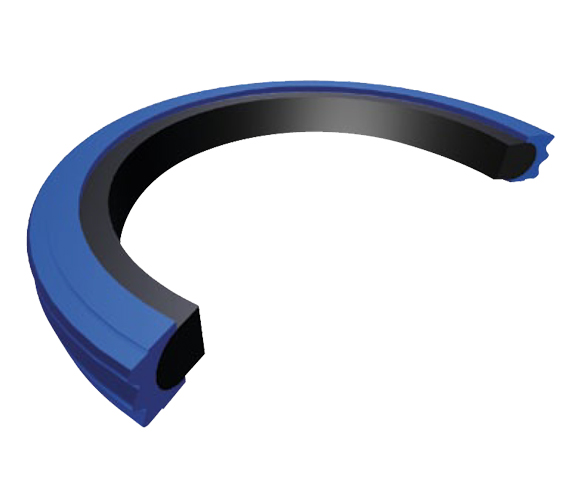

The TTQ is a two piece piston seal composed of one sealing element in polyurethane and one rubber element which functions as an energizer. The rectangular cross section is designed for demanding applications and is able to resist twisting or rolling making the seal more stable in the groove.
GENERAL FEATURES
  • Ease of mounting
  • High abrasion resistance
  • High extrusion resistance
  • Low deformation value
WORKING CONDITIONS
  • pressure: 400 bar
  • speed: 0.5 m/s
  • temperature: -30°c +110°c
PRH SEALS

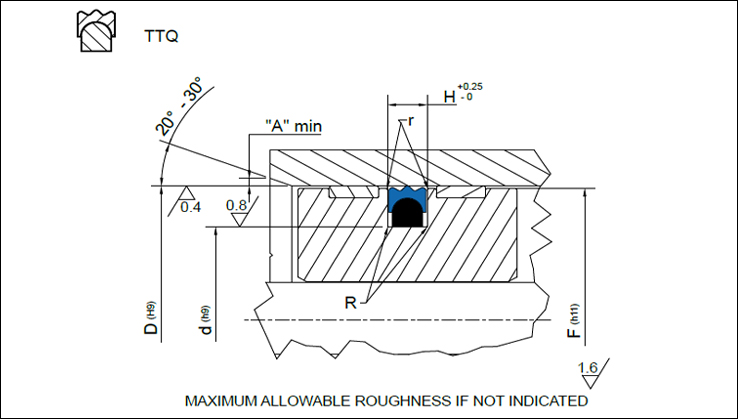

NS RIF. DIMENSIONI SEDI / HOUSING DIMENSIONS
Our ref. D d H C R1
TTQ 20 20.00 12.50 3.20 2.00 0.20
TTQ 25 25.00 17.50 3.20 2.00 0.20
TTQ 30 30.00 22.50 3.20 2.00 0.20
TTQ 32 32.00 24.50 3.20 2.00 0.30
TTQ 35 35.00 24.00 4.20 2.50 0.30
TTQ 40 40.00 24.50 6.30 3.00 0.30
TTQ 40/1 40.00 29.00 4.20 2.50 0.30
TTQ 45 45.00 34.00 4.20 2.50 0.30
TTQ 50 50.00 34.50 6.30 3.00 0.30
TTQ 50/1 50.00 39.00 4.20 2.50 0.30
TTQ 55 55.00 39.50 6.30 3.00 0.30
TTQ 55/1 55.00 44.00 4.20 3.00 0.30
TTQ 60 60.00 44.50 6.30 3.00 0.30
TTQ 60/1 60.00 49.00 4.20 2.50 0.30
TTQ 63 63.00 47.50 6.30 3.00 0.30
TTQ 63/1 63.00 52.00 4.20 2.50 0.30
TTQ 65 65.00 49.50 6.30 4.00 0.30
TTQ 65/1 65.00 52.00 4.20 2.50 0.30
TTQ 70 70.00 54.50 6.30 4.00 0.30
TTQ 70/1 70.00 59.00 4.20 3.00 0.30
TTQ 75 75.00 59.50 6.30 4.00 0.30
TTQ 80/1 80.00 69.00 4.20 2.50 0.30
TTQ 80 80.00 64.50 6.30 4.00 0.30
TTQ 85 85.00 69.50 6.30 4.00 0.30
TTQ 90 90.00 74.50 6.30 4.00 0.30
TTQ 95 95.00 79.50 6.30 4.00 0.30
TTQ 100 100.00 84.50 6.30 4.00 0.30
TTQ 105 105.00 89.50 6.30 4.00 0.30
TTQ 110 110.00 94.50 6.30 4.00 0.30
TTQ 120 120.00 104.50 6.30 4.00 0.30
TTQ 120/1 120.00 99.00 10.50 4.00 0.30
TTQ 125 125.00 109.50 6.30 4.00 0.30
TTQ 130 130.00 114,,5 6.30 4.00 0.30
TTQ 130/1 130.00 109.00 8.10 4.00 0.30
TTQ 140 140.00 119.00 8.10 5.00 0.40
TTQ 150 150.00 129.00 8.10 5.00 0.40
TTQ 150/1 150.00 129.00 10.50 5.00 0.40
TTQ 160 160.00 139.00 8.10 5.00 0.40
TTQ 180 180.00 159.00 8.10 5.00 0.40
TTQ 200 200.00 179.00 8.10 5.00 0.40
