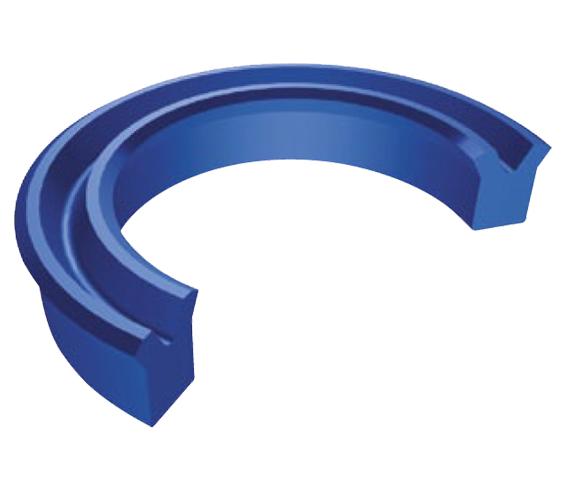

TTU

PRH SEALS
Suitable for both piston and rod sealing elements, the TTU is produced in Polyurethane “Tecnolan” which provides this sealing element with elasticity and abrasion resistance. The symmetrical profile that is particular to this seal finds optimal working conditions in low speed cylinders.
GENERAL FEATURES
  • Ease of mounting
  • High abrasion resistance
  • High extrusion resistance
  • Low deformation value
WORKING CONDITIONS
  • pressure: 400 bar
  • speed: 0,5 m/s
  • temperature: -40°c + 110°c
PRH SEALS

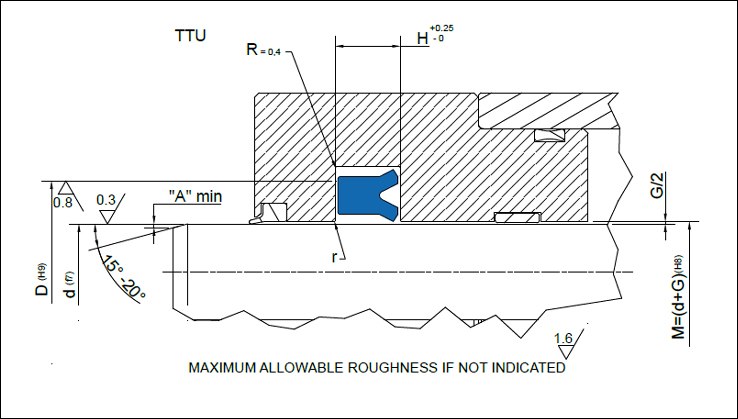

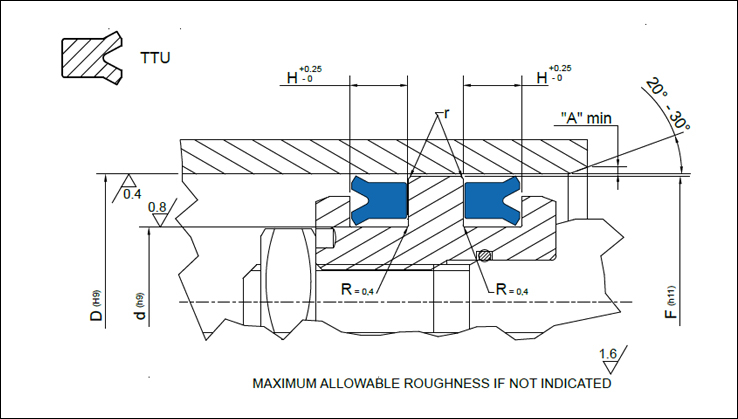

NS RIF. ALTRI RIF. DIMENSIONI SEDI / HOUSING DIMENSIONS
Our ref. Other ref. D d H
TTU 1601 3-9 9.00 3.00 5.00
TTU 1601/1 6-9 9.00 6.00 3.00
TTU 1601/2 6-9/1 9.00 6.00 2.50
TTU 1602 4-10/1 10.00 4.00 4.50
TTU 1603 4-10 10.00 4.00 5.00
TTU 1604 4,5-11 11.00 4.50 5.50
TTU 1604/1 4-12 12.00 4.00 5.20
TTU 1605 5-12/1 12.00 5.00 5.50
TTU 1606 5-12 12.00 5.00 6.30
TTU 1607 5-12/2 12.00 5.00 6.50
TTU 1607/1 5,5-12 12.00 5.50 8.50
TTU 1608 6-12/1 12.00 6.00 4.50
TTU 1609 6-12/2 12.00 6.00 6.00
TTU 1610 6-12 12.00 6.00 6.50
TTU 1611 8-12 12.00 8.00 3.50
TTU 1612 4,5-12,5 12.50 4.50 5.00
TTU 1613 5,0-12,7 12.70 5.00 9.00
TTU 1614 6,0-12,7 12.70 6.00 6.50
TTU 1615 7-14 14.00 7.00 4.20
TTU 1616 8-14 14.00 8.00 7.00
TTU 1616/1 7,0-14,5 14.50 7.00 3.80
TTU 1617 6-15 15.00 6.00 9.00
TTU 1618 7-15 15.00 7.00 8.00
TTU 1619 8-15 15.00 8.00 6.30
TTU 1620 8-15/1 15.00 8.00 9.00
TTU 1621 9-15 15.00 9.00 9.00
TTU 1622 8-16 16.00 8.00 6.30
TTU 1623 10-16 16.00 10.00 6.50
TTU 1623/1 6,32-16,3 16.30 6.32 9.00
TTU 1624 5-17 17.00 5.00 10.00
TTU 1625 11-17 17.00 11.00 5.00
TTU 1625/1 7,1-17,1 17.10 11.10 9.00
TTU 1625/2 8-18/1 18.00 8.00 9.00
TTU 1626 8-18 18.00 8.00 10.00
TTU 1627 10-18/1 18.00 10.00 6.00
TTU 1628 10-18/2 18.00 10.00 7.00
TTU 1628/1 10-18/3 18.00 10.00 8.00
TTU 1629 10-18 18.00 10.00 9.00
TTU 1629/1 10-18/4 18.00 10.00 4.50
TTU 1630 12-18/1 18.00 12.00 5.50
TTU 1631 12-18 18.00 12.00 7.00
TTU 1631/1 11,6-18,5 18.50 11.60 3.80
TTU 1632 9-19 19.00 9.00 7.00
TTU 1632/2 9-19/1 19.00 9.00 9.00
TTU 1632/1 12,6-19,5 19.50 12.60 3.80
TTU 1633 10-20 20.00 10.00 9.00
TTU 1633/1 12-20/2 20.00 12.00 4.50
TTU 1634 12-20/1 20.00 12.00 8.00
TTU 1635 12-20 20.00 12.00 9.00
TTU 1636 14-20 20.00 14.00 5.30
TTU 1637 11,0-20,5 20.50 11.00 7.00
TTU 1637/1 11,2-21,2 21.20 11.20 9.00
TTU 1638 8-22 22.00 8.00 9.00
TTU 1639 10-22 22.00 10.00 7.00
TTU 1640 10-22/1 22.00 10.00 9.00
TTU 1641 12-22/1 22.00 12.00 6.00
TTU 1642 12-22 22.00 12.00 8.00
TTU 1643 12-22/2 22.00 12.00 9.00
TTU 1644 14-22/3 22.00 14.00 5.00
TTU 1644/1 14-22/4 22.00 14.00 6.00
TTU 1645 14-22 22.00 14.00 7.00
TTU 1646 14-22/1 22.00 14.00 9.00
TTU 1647 14-22/2 22.00 14.00 12.00
TTU 1648 16-22/1 22.00 16.00 4.50
TTU 1649 16-22 22.00 16.00 5.00
TTU 1649/1 16-22 22.00 16.00 6.00
TTU 1649/2 12,5-22,5 22.50 12.50 9.00
TTU 1650 12-24 24.00 12.00 9.00
TTU 1651 12-24/1 24.00 12.00 10.00
TTU 1652 14-24 24.00 14.00 9.00
TTU 1652/1 16-24/2 24.00 16.00 4.50
TTU 1653 16-24/1 24.00 16.00 6.00
TTU 1654 16-24 24.00 16.00 10.00
TTU 1655 12-25 25.00 12.00 9.00
TTU 1656 12-25/1 25.00 12.00 11.00
TTU 1657 15-25 25.00 15.00 9.00
TTU 1658 17-25 25.00 17.00 11.00
TTU 1658/1 17-25/1 25.00 17.00 4.50
TTU 1659 18-25/1 25.00 18.00 7.00
TTU 1660 18-25 25.00 18.00 5.50
TTU 1661 19-25 25.00 19.00 7.00
TTU 1662 16-26 26.00 16.00 6.00
TTU 1663 16-26/1 26.00 16.00 9.00
TTU 1664 16-26/2 26.00 16.00 11.00
TTU 1664/1 18-26/3 26.00 18.00 4.50
TTU 1664/2 18-26/4 26.00 18.00 6.00
TTU 1665 18-26/1 26.00 18.00 7.50
TTU 1666 18-26/2 26.00 18.00 9.00
TTU 1667 18-26 26.00 18.00 9.50
TTU 1667/1 20-26 26.00 20.00 5.50
TTU 1667/2 20-26/1 26.00 20.00 4.00
TTU 1668 15-27 27.00 15.00 7.00
TTU 1669 15-28 28.00 15.00 11.00
TTU 1670 16-28 28.00 16.00 7.00
TTU 1671 18-28 28.00 18.00 9.00
TTU 1672 20-28 28.00 20.00 5.00
TTU 1672/1 20-28/2 28.00 20.00 6.00
TTU 1673 20-28/1 28.00 20.00 9.00
TTU 1674 22-28 28.00 22.00 9.00
TTU 1675 20-29 29.00 20.00 5.50
TTU 1676 18-30 30.00 18.00 9.00
TTU 1677 20-30 30.00 20.00 9.00
TTU 1678 20-30/1 30.00 20.00 11.00
TTU 1678/1 22-30/2 30.00 22.00 4.50
TTU 1678/2 22-30/3 30.00 22.00 6.00
TTU 1679 22-30 30.00 22.00 7.00
TTU 1680 22-30/1 30.00 22.00 11.00
TTU 1681/4 22,4-30 30.00 22.40 6.00
TTU 1680/1 25-31 31.00 25.00 4.00
TTU 1680/3 23,5-31,5 31.50 23.50 6.00
TTU 1680/2 24-31,75 31.75 24.00 8.00
TTU 1681 16-32 32.00 16.00 9.00
TTU 1682 20-32 32.00 20.00 8.50
TTU 1683 22-32 32.00 22.00 9.00
TTU 1684 22-32/1 32.00 22.00 11.00
TTU 1684/1 24-32/1 32.00 24.00 5.00
TTU 1685 24-32 32.00 24.00 8.00
TTU 1685/4 22,4-32,4 32.40 22.40 9.00
TTU 1685/1 25-33 33.00 25.00 5.00
TTU 1685/5 25-33/2 33.00 25.00 6.00
TTU 1685/3 25-33/1 33.00 25.00 7.50
TTU 1685/2 28-34 34.00 28.00 4.00
TTU 1686 20-35 35.00 20.00 13.00
TTU 1687 22-35 35.00 22.00 11.00
TTU 1688 25-35 35.00 25.00 5.50
TTU 1689 25-35/2 35.00 25.00 9.00
TTU 1690 25-35/1 35.00 25.00 11.00
TTU 1690/1 27-35 35.00 27.00 4.50
TTU 1691 28-35 35.00 28.00 5.50
TTU 1691/2 28-35,5 35.50 28.00 6.00
TTU 1691/1 28-36/1 36.00 28.00 4.50
TTU 1692 28-36 36.00 28.00 7.50
TTU 1692/1 30-36 36.00 30.00 4.00
TTU 1692/2 23,8-36,5 36.50 23.80 7.00
TTU 1693 25-38 38.00 25.00 11.00
TTU 1694 28-38 38.00 28.00 9.00
TTU 1695 30-38 38.00 30.00 6.50
TTU 1695/1 32-38 38.00 32.00 4.00
TTU 1696 20-39 39.00 20.00 11.00
TTU 1697 20-40 40.00 20.00 11.00
TTU 1698 20-40/1 40.00 20.00 13.00
TTU 1699 24-40 40.00 24.00 9.00
TTU 1700 25-40 40.00 25.00 11.00
TTU 1701 28-40 40.00 28.00 11.00
TTU 1702 30-40/1 40.00 30.00 5.50
TTU 1702/1 30-40/2 40.00 30.00 7.00
TTU 1703 30-40 40.00 30.00 11.00
TTU 1703/1 32-40/2 40.00 32.00 5.00
TTU 1704 32-40 40.00 32.00 6.00
TTU 1704/1 32-40/3 40.00 32.00 7.00
TTU 1705 32-40/1 40.00 32.00 9.00
TTU 1705/1 34-40 40.00 34.00 6.00
TTU 1705/2 31,5-41,5 41.50 31.50 7.00
TTU 1706 30-42/1 42.00 30.00 10.00
TTU 1707 30-42 42.00 30.00 11.00
TTU 1707/1 32-42/1 42.00 32.00 7.00
TTU 1707/2 32-42/2 42.00 32.00 6.00
TTU 1708 32-42 42.00 32.00 11.00
TTU 1708/2 28-43 43.00 28.00 11.00
TTU 1708/3 32-44 44.00 32.00 6.50
TTU 1708/1 36-44 44.00 36.00 5.00
TTU 1709 30-45 45.00 30.00 11.00
TTU 1710 32-45 45.00 32.00 11.00
TTU 1711 34-45 45.00 34.00 8.00
TTU 1712 34-45/1 45.00 34.00 10.00
TTU 1712/1 35-45/2 45.00 35.00 7.00
TTU 1713 35-45/1 45.00 35.00 9.00
TTU 1714 35-45 45.00 35.00 11.00
TTU 1714/2 35,5-45 45.00 35.50 7.00
TTU 1714/1 37-45 45.00 37.00 5.00
TTU 1715 38-45 45.00 38.00 5.50
TTU 1716 36-46 46.00 36.00 8.00
TTU 1716/1 36-46 46.00 36.00 7.00
TTU 1717 38-46 46.00 38.00 7.50
TTU 1717/1 31,5-46,5 46.50 31.50 11.00
TTU 1718 35-48 48.00 35.00 11.00
TTU 1718/1 38-48 48.00 38.00 7.00
TTU 1719 40-48/1 48.00 40.00 9.00
TTU 1720 40-48 48.00 40.00 12.00
TTU 1721 30-50/1 50.00 30.00 11.00
TTU 1722 30-50 50.00 30.00 13.00
TTU 1723 32-50 50.00 32.00 13.00
TTU 1724 34-50 50.00 34.00 15.00
TTU 1725 35-50 50.00 35.00 11.00
TTU 1726 38-50 50.00 38.00 10.00
TTU 1726/1 40-50/3 50.00 40.00 6.00
TTU 1726/2 40-50/4 50.00 40.00 7.00
TTU 1727 40-50/1 50.00 40.00 7.50
TTU 1728 40-50/2 50.00 40.00 9.00
TTU 1729 40-50 50.00 40.00 11.00
TTU 1730 42-50 50.00 42.00 9.00
TTU 1730/1 35,5-50,5 50.50 35.50 11.00
TTU 1731 42-52 52.00 42.00 10.00
TTU 1731/1 38,10-53,97 53.97 38.10 11.00
TTU 1732 35-55/1 55.00 35.00 11.00
TTU 1733 35-55 55.00 35.00 13.00
TTU 1734 38-55 55.00 38.00 11.00
TTU 1735 40-55 55.00 40.00 11.00
TTU 1736 45-55/1 55.00 45.00 7.50
TTU 1736/1 45-55/2 55.00 45.00 6.00
TTU 1736/2 45-55/3 55.00 45.00 7.00
TTU 1737 45-55 55.00 45.00 11.00
TTU 1737/1 45-56 56.00 45.00 8.00
TTU 1738 40-56 56.00 40.00 11.00
TTU 1739 38-58 58.00 38.00 11.00
TTU 1739/1 46-58 58.00 46.00 6.50
TTU 1740 48-58 58.00 48.00 11.00
TTU 1741 40-60/1 60.00 40.00 11.00
TTU 1742 40-60 60.00 40.00 14.00
TTU 1743 40-60/2 60.00 40.00 19.00
TTU 1744 45-60 60.00 45.00 11.00
TTU 1744/1 50-60/3 60.00 50.00 6.00
TTU 1744/2 50-60/4 60.00 50.00 7.00
TTU 1745 50-60/2 60.00 50.00 8.00
TTU 1746 50-60 60.00 50.00 11.00
TTU 1747 50-60/1 60.00 50.00 12.00
TTU 1748 42-62 62.00 42.00 13.00
TTU 1749 50-62 62.00 50.00 10.00
TTU 1750 52-62 62.00 52.00 13.00
TTU 1751 45-63 63.00 45.00 11.00
TTU 1751/1 48-63 63.00 48.00 11.00
TTU 1752 50-63 63.00 50.00 7.00
TTU 1752/1 53-63/1 63.00 53.00 6.00
TTU 1752/2 53-63/2 63.00 53.00 7.00
TTU 1753 53-63 63.00 53.00 7.50
TTU 1754 40-65 65.00 40.00 13.00
TTU 1755 45-65 65.00 45.00 11.00
TTU 1756 45-65/1 65.00 45.00 13.00
TTU 1757 50-65 65.00 50.00 11.00
TTU 1757/1 55-65/2 65.00 55.00 6.00
TTU 1757/2 55-65/3 65.00 55.00 7.00
TTU 1758 55-65/1 65.00 55.00 11.00
TTU 1759 55-65 65.00 55.00 13.00
TTU 1759/1 56-66 66.00 56.00 6.00
TTU 1759/2 56-66/1 66.00 56.00 7.00
TTU 1759/3 58-68 68.00 58.00 7.00
TTU 1760 36-70 70.00 36.00 11.00
TTU 1761 40-70 70.00 40.00 16.00
TTU 1762 50-70 70.00 50.00 11.00
TTU 1763 50-70/1 70.00 50.00 13.00
TTU 1764 50-70/2 70.00 50.00 19.00
TTU 1764/1 53-70 70.00 53.00 9.00
TTU 1765 55-70 70.00 55.00 13.00
TTU 1765/1 70-60 70.00 60.00 6.00
TTU 1765/2 70-60/3 70.00 60.00 7.00
TTU 1766 60-70/1 70.00 60.00 9.00
TTU 1767 60-70/2 70.00 60.00 11.00
TTU 1768 60-70 70.00 60.00 13.00
TTU 1768/2 70-54 70.00 54.00 9.50
TTU 1768/3 70,8-53,5 70.80 53.50 9.00
TTU 1768/4 60-71 71.00 60.00 8.00
TTU 1768/6 53-73 73.00 53.00 13.00
TTU 1768/1 63-73 73.00 63.00 5.50
TTU 1768/5 63-73/1 73.00 63.00 7.00
TTU 1769 40-75 75.00 40.00 11.00
TTU 1770 55-75 75.00 55.00 13.00
TTU 1771 60-75/1 75.00 60.00 11.00
TTU 1772 60-75 75.00 60.00 13.00
TTU 1773 63-75 75.00 63.00 11.00
TTU 1773/2 65-75/2 75.00 65.00 5.50
TTU 1773/1 65-75/1 75.00 65.00 7.00
TTU 1774 65-75 75.00 65.00 13.00
TTU 1774/1 56-76 76.00 56.00 13.00
TTU 1775 66-76 76.00 66.00 9.00
TTU 1775/2 66-76 76.00 66.00 7.00
TTU 1775/1 67-77/2 77.00 67.00 7.00
TTU 1776 67-77/1 77.00 67.00 11.00
TTU 1777 67-77 77.00 67.00 13.00
TTU 1778 63-78 78.00 63.00 11.00
TTU 1779 55-80 80.00 55.00 13.00
TTU 1780 60-80 80.00 60.00 11.00
TTU 1781 60-80/1 80.00 60.00 13.00
TTU 1782 60-80/3 80.00 60.00 14.50
TTU 1783 60-80/2 80.00 60.00 19.00
TTU 1784 65-80/1 80.00 65.00 12.00
TTU 1785 65-80 80.00 65.00 13.00
TTU 1786 66-80 80.00 66.00 11.00
TTU 1787 66-80/1 80.00 66.00 14.00
TTU 1788 70-80/3 80.00 70.00 6.00
TTU 1788/1 70-80/4 80.00 70.00 7.00
TTU 1789 70-80/1 80.00 70.00 9.00
TTU 1790 70-80/2 80.00 70.00 11.00
TTU 1791 70-80 80.00 70.00 13.00
TTU 1791/1 71-80 80.00 71.00 7.00
TTU 1792 63-83 83.00 63.00 16.00
TTU 1792/1 63-83/1 83.00 63.00 13.00
TTU 1793 60-85 85.00 60.00 13.50
TTU 1794 65-85/1 85.00 65.00 11.00
TTU 1795 65-85 85.00 65.00 13.00
TTU 1796 70-85 85.00 70.00 13.00
TTU 1796/1 75-85/1 85.00 75.00 7.00
TTU 1797 75-85 85.00 75.00 13.00
TTU 1797/1 67-87 87.00 67.00 13.00
TTU 1798 60-90 90.00 60.00 16.00
TTU 1799 70-90 90.00 70.00 13.00
TTU 1800 70-90/2 90.00 70.00 14.50
TTU 1801 70-90/1 90.00 70.00 19.00
TTU 1802 75-90 90.00 75.00 8.50
TTU 1803 75-90/2 90.00 75.00 11.00
TTU 1804 75-90/1 90.00 75.00 13.00
TTU 1804/1 80-90/2 90.00 80.00 6.00
TTU 1804/2 80-90/3 90.00 80.00 7.00
TTU 1805 80-90 90.00 80.00 11.00
TTU 1806 80-90/1 90.00 80.00 13.00
TTU 1806/1 71-91 91.00 71.00 13.00
TTU 1807 82-92 92.00 82.00 11.00
TTU 1808 78-93 93.00 78.00 11.50
TTU 1809 84,5-94,0 94.00 84.50 8.80
TTU 1810 70-95 95.00 70.00 13.00
TTU 1811 75-95 95.00 75.00 13.00
TTU 1811/1 75-95/1 95.00 75.00 14.50
TTU 1812 80-95 95.00 80.00 13.00
TTU 1813 85-95 95.00 85.00 9.50
TTU 1814 85-95/1 95.00 85.00 13.00
TTU 1815 88-96 96.00 88.00 9.00
TTU 1816 80-100 100.00 80.00 11.00
TTU 1817 80-100/1 100.00 80.00 13.00
TTU 1818 80-100/2 100.00 80.00 14.50
TTU 1818/1 85-100/2 100.00 85.00 10.00
TTU 1819 85-100/1 100.00 85.00 12.00
TTU 1820 85-100 100.00 85.00 13.00
TTU 1820/1 90-100/3 100.00 90.00 6.00
TTU 1821 90-100/2 100.00 90.00 8.00
TTU 1822 90-100 100.00 90.00 9.00
TTU 1823 90-100/1 100.00 90.00 13.00
TTU 1823/1 90-102 102.00 90.00 10.00
TTU 1824 85-105 105.00 85.00 13.00
TTU 1825 90-105 105.00 90.00 13.00
TTU 1825/2 90-105/1 105.00 90.00 10.00
TTU 1825/1 90-110/3 110.00 90.00 11.00
TTU 1826 90-110 110.00 90.00 13.00
TTU 1827 90-110/1 110.00 90.00 19.00
TTU 1827/1 90-110/2 110.00 90.00 14.00
TTU 1828 95-110 110.00 95.00 13.00
TTU 1829 95-110/1 110.00 95.00 16.00
TTU 1829/1 100-110 110.00 100.00 6.00
TTU 1830 95-112 112.00 95.00 12.00
TTU 1830/2 98-112 112.00 98.00 10.00
TTU 1830/1 101,6-114,3 114.00 101.60 7.00
TTU 1831 85-115 115.00 85.00 16.00
TTU 1832 90-115/1 115.00 90.00 16.00
TTU 1833 90-115 115.00 90.00 23.00
TTU 1834 95-115 115.00 95.00 13.00
TTU 1835 95-115/1 115.00 95.00 19.00
TTU 1836 100-115 115.00 100.00 13.00
TTU 1836/1 100-115/1 115.00 100.00 10.00
TTU 1837 100-120 120.00 100.00 13.00
TTU 1838 100-120/1 120.00 100.00 14.50
TTU 1838/1 100-120/2 120.00 100.00 11.00
TTU 1839 105-120 120.00 105.00 9.00
TTU 1839/1 105-120/2 120.00 105.00 10.00
TTU 1840 105-120/1 120.00 105.00 16.00
TTU 1841 106-120 120.00 106.00 9.50
TTU 1842 100-125 125.00 100.00 13.00
TTU 1843 100-125/2 125.00 100.00 16.00
TTU 1843/1 105-125/3 125.00 105.00 11.00
TTU 1844 105-125/1 125.00 105.00 13.00
TTU 1845 105-125 125.00 105.00 15.00
TTU 1845/1 105-125/2 125.00 105.00 16.00
TTU 1845/2 105-125/3 125.00 105.00 17.00
TTU 1846 110-125 125.00 110.00 13.00
TTU 1847 110-125/1 125.00 110.00 16.00
TTU 1847/1 110-125/2 125.00 110.00 10.00
TTU 1847/2 112-125 125.00 112.00 10.00
TTU 1848 113-125 125.00 113.00 10.50
TTU 1848/1 116-126 126.00 116.00 17.00
TTU 1849 115-126 126.00 115.00 16.00
TTU 1849/1 114,3-127,0 127.00 114.30 7.00
TTU 1849/2 114,3-127/1 127.00 114.30 10.50
TTU 1850 100-130 130.00 100.00 13.00
TTU 1850/1 110-130/2 130.00 110.00 11.00
TTU 1851 110-130 130.00 110.00 16.00
TTU 1852 110-130/1 130.00 110.00 19.00
TTU 1852/2 110-130/3 130.00 110.00 17.00
TTU 1852/3 115-130 130.00 115.00 10.00
TTU 1852/1 120-130/1 130.00 120.00 6.00
TTU 1853 120-130 130.00 120.00 15.00
TTU 1853/1 112-132 132.00 112.00 17.00
TTU 1854 115-135 135.00 115.00 16.00
TTU 1855 120-135 135.00 120.00 16.00
TTU 1855/2 120-135/1 135.00 120.00 10.00
TTU 1855/1 118-138 138.00 118.00 17.00
TTU 1856 115-140/1 140.00 115.00 16.00
TTU 1857 115-140 140.00 115.00 23.00
TTU 1857/1 120-140/1 140.00 120.00 11.00
TTU 1858 120-140 140.00 120.00 16.00
TTU 1858/3 120-140/2 140.00 120.00 17.00
TTU 1858/1 125-140/2 140.00 125.00 8.00
TTU 1858/2 125-140/3 140.00 125.00 10.00
TTU 1859 125-140 140.00 125.00 12.00
TTU 1859/1 125-140 140.00 125.00 13.00
TTU 1860 125-140/1 140.00 125.00 16.00
TTU 1860/1 125-145/2 145.00 125.00 11.00
TTU 1861 125-145 145.00 125.00 16.00
TTU 1861/1 125-145/3 145.00 125.00 17.00
TTU 1862 125-145/1 145.00 125.00 19.00
TTU 1862/1 130-145 145.00 130.00 12.00
TTU 1863 130-150 150.00 130.00 16.00
TTU 1863/1 130-150 150.00 130.00 13.00
TTU 1863/2 130-150/1 150.00 130.00 17.00
TTU 1864 135-150 150.00 135.00 16.00
TTU 1864/2 136-150 150.00 136.00 10.00
TTU 1864/1 140-150 150.00 140.00 6.00
TTU 1865 125-155 155.00 125.00 16.00
TTU 1866 135-155 155.00 135.00 16.00
TTU 1866/1 140-155 155.00 140.00 10.00
TTU 1867 140-155/AI 155.00 140.00 16.00
TTU 1868 135-160 160.00 135.00 16.00
TTU 1868/1 140-160/2 160.00 140.00 11.00
TTU 1869 140-160/1 160.00 140.00 13.00
TTU 1869/1 140-160 160.00 140.00 16.00
TTU 1869/4 140-160/3 160.00 140.00 17.00
TTU 1869/2 145-160 160.00 145.00 10.00
TTU 1869/3 148-160 160.00 148.00 10.50
TTU 1870 150-160 160.00 150.00 14.50
TTU 1870/1 150-160/1 160.00 150.00 16.00
TTU 1871 140-165 165.00 140.00 16.00
TTU 1872 145-165 165.00 145.00 16.00
TTU 1872/1 150-170 170.00 150.00 13.00
TTU 1873 150-170 170.00 150.00 16.00
TTU 1873/1 150-170/2 170.00 150.00 17.00
TTU 1874 150-170/1 170.00 150.00 19.00
TTU 1874/1 155-170 170.00 155.00 11.00
TTU 1874/2 160-170 170.00 160.00 6.00
TTU 1875 150-180 180.00 150.00 14.50
TTU 1875/1 160-180 180.00 160.00 11.00
TTU 1876 160-180 180.00 160.00 16.00
TTU 1876/2 165-180 180.00 165.00 10.00
TTU 1876/1 170-190 190.00 170.00 13.00
TTU 1877 170-190 190.00 170.00 16.00
TTU 1878 170-200 200.00 170.00 19.00
TTU 1879 175-200 200.00 175.00 16.00
TTU 1879/1 180-200/1 200.00 180.00 11.00
TTU 1879/2 180-200/2 200.00 180.00 13.00
TTU 1880 180-200 200.00 180.00 16.00
TTU 1880/1 190-206 206.00 190.00 21.00
TTU 1881 180-220 220.00 180.00 21.00
TTU 1881/1 200-220/1 220.00 200.00 11.00
TTU 1881/2 200-220/3 220.00 200.00 13.00
TTU 1882 200-220 220.00 200.00 16.00
TTU 1882/1 200-220/2 220.00 200.00 17.00
TTU 1882/3 200-220/AE 220.00 200.00 18.00
TTU 1882/4 200-220/AI 220.00 200.00 18.00
TTU 1883/1 208-220 220.00 208.00 10.00
TTU 1883 200-225 225.00 200.00 19.00
TTU 1884 225-245 245.00 225.00 16.00
TTU 1885 220-250 250.00 220.00 19.00
TTU 1885/2 225-250 250.00 225.00 19.00
TTU 1885/3 230-250 250.00 230.00 13.00
TTU 1885/4 230-250/1 250.00 230.00 16.00
TTU 1885/1 238-250 250.00 238.00 10.00
TTU 1885/6 230-255 255.00 230.00 20.00
TTU 1885/5 240-260 260.00 240.00 21.00
TTU 1886 245-270 270.00 245.00 16.00
TTU 1886/1 260-275 275.00 260.00 12.00
TTU 1887 250-280 280.00 250.00 19.00
TTU 1887/1 265-280 280.00 265.00 12.00
TTU 1888 265-290 290.00 265.00 18.00
TTU 1889 270-290 290.00 270.00 18.00
TTU 1890 270-300 300.00 270.00 16.00
TTU 1891 280-300 300.00 280.00 16.00
TTU 1891/1 285-300 300.00 285.00 12.00
TTU 1891/5 280-310 310.00 280.00 20.00
TTU 1891/2 300-320 320.00 300.00 16.00
TTU 1891/3 300-320 320.00 300.00 20.00
TTU 1891/4 300-330 330.00 300.00 19.00
TTU 1892 305-320 320.00 305.00 18.00
TTU 1892/1 320-340 340.00 320.00 16.00
TTU 1892/3 340-360 360.00 340.00 16.00
TTU 1892/2 360-380 380.00 360.00 16.00
TTU 1893 360-390 390.00 360.00 23.00
TTU 1894 380-400 400.00 380.00 16.00
TTU 1894/1 394-415 415.00 394.00 17.00
TTU 1895 400-420 420.00 400.00 16.00
TTU 1896 420-440 440.00 420.00 16.00
