TTW

PRH SEALS

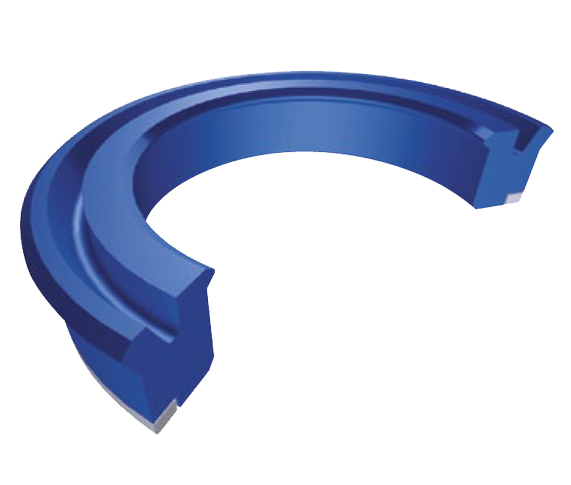

The TTW profile designed for use in simple and double acting hydraulic cylinders which maintain the ISO 5597 dimensions. Formed of two elements, a sealing ring in Polyurethane “Tecnolan” and an anti-extrusion ring located on the outer diameter in acetal resin (POM), this seal finds its optimal working place in the presence of harsh working conditions such as those found in earth moving equipment where excellent seal performance is necessary along with long seal life.
GENERAL FEATURES
  • Ease of mounting
  • High abrasion resistance
  • High extrusion resistance
  • Low deformation value
WORKING CONDITIONS
  • pressure: 400 bar
  • speed: 0,5 m/s
  • temperature: -40°c + 110°c
PRH SEALS

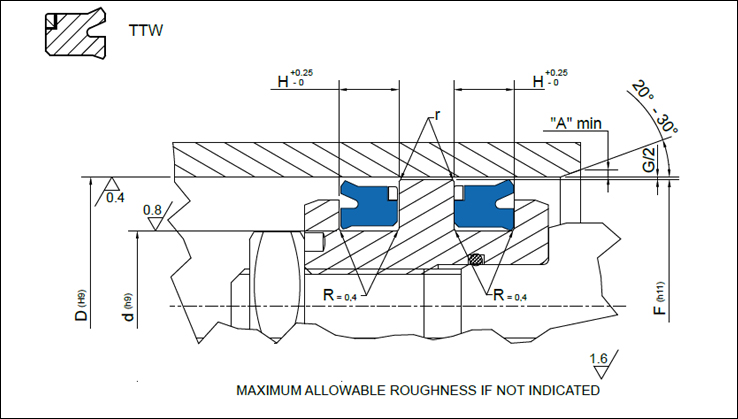

NS. RIF DIMENSIONI SEDI / Housing dimensions
Our ref. D d M F H
TTW 50 50.00 35.00 45.00 49.20 9.50
TTW 60 60.00 45.00 55.00 59.30 9.50
TTW 63 63.00 48.00 58.00 62.30 9.50
TTW 65 65.00 50.00 60.00 64.30 9.50
TTW 70 70.00 50.00 64.00 68.90 12.50
TTW 70/1 70.00 50.00 64.00 68.90 13.00
TTW 80 80.00 60.00 74.00 78.90 12.50
TTW 80/1 80.00 60.00 74.00 78.90 13.00
TTW 80/2 80.00 65.00 76.00 79.30 9.50
TTW 90 90.00 70.00 84.00 88.90 12.50
TTW 90/1 90.00 70.00 84.00 88.90 13.00
TTW 100 100.00 80.00 94.00 98.90 12.50
TTW 100/1 100.00 80.00 94.00 98.90 13.00
TTW 100/2 100.00 85.00 95.00 99.30 9.50
TTW 110 110.00 90.00 104.00 108.90 12.50
TTW 125 125.00 100.00 117.00 123.90 15.50
TTW 125/1 125.00 105.00 119.00 123.90 12.50
TTW 140 140.00 120.00 134.00 138.90 12.50
TTW 150 150.00 130.00 144.00 148.90 12.50
TTW 160 160.00 130.00 150.00 158.90 19.00
TTW 160/1 160.00 140.00 154.00 158.90 12.50
TTW 170 170.00 150.00 164.00 168.90 12.50
TTW 180 180.00 160.00 174.00 178.90 12.50
TTW 200 200.00 170.00 190.00 199.00 20.00
TTW 200/1 200.00 175.00 193.00 199.00 16.00
TTW 225 225.00 195.00 215.00 224.00 19.00
TTW 250 250.00 220.00 240.00 249.00 19.00
TTW 250/1 250.00 225.00 242.00 249.00 16.00
