PDH

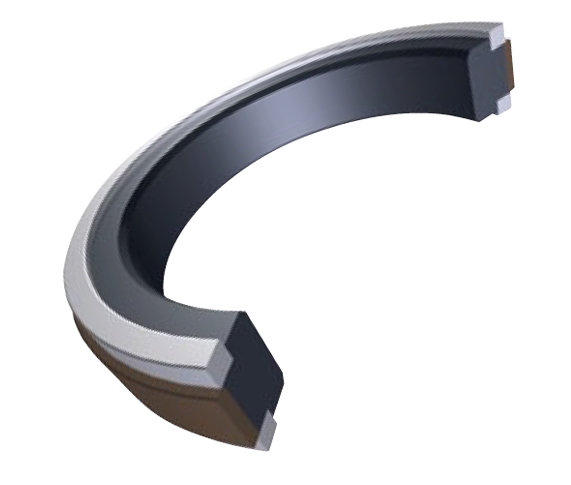

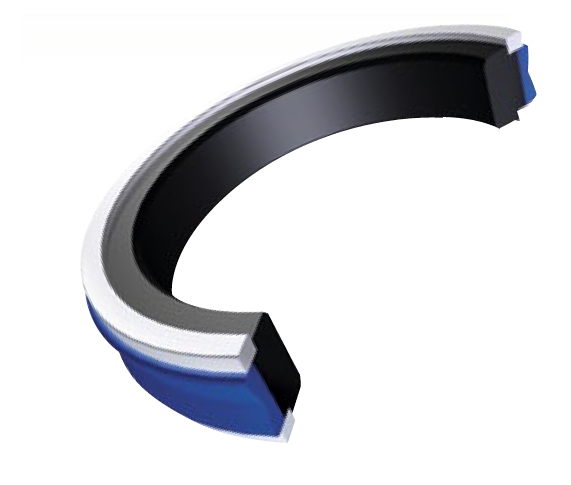

PDH and PDP, catagorized as slide ring seals, are designated to fit as standard sealing elements where normal piston seals are actually applied. Characteristics include keeping the same groove dimensions while offering two material combinations. The PDH, composed of Acetal resin back-up rings (protecting the dynamic sealing part from extrusion and preventing dust particles to reach the seal), a main sealing element in reinforced PTFE (giving excellent support to all earth moving equipment where high pressure and speeds are present) and a energizer which statically seals the PDH in the housing groove. The second version, or PDP, is an excellent economic alternative composed of Acetal resin back-up rings, a main sealing element in Polyurethane “Tecnolan” (guaranteeing longer service life, resistance to wear, and easier installation) suitable for agriculture machinery where low pressure and moderate velocity occurs..
Standard version
  • Sealing Ring - NBR
  • Outer Sealing Ring - PTFE
  • Back up Rings - POM
Alternative Versions
  • Sealing Ring - low temp.
  • Sealing Ring - FKM
  • Back up Rings - PTFE
Pressure up to
  • 60 MPa
Speed up to
  • 1.5 m/s
Temperature
  • -30°C +110°C
  • -20°C +200°C FKM
  • -50°C +110°C TDS 108
Applications
  • Mobile Hydraulics
  • Excavators
  • Heavy duty hydraulic applications

PDP

Standard version
  • Sealing Ring - NBR
  • Outer Sealing Ring - Polyurethane
  • Back up Rings - POM
Alternative Versions
  • Sealing Ring - low temp.
Pressure up to
  • 40 MPa
Speed up to
  • 0.5 m/s
Temperature
  • -30°C +110°C
  • -50°C +110°C TDS 108
Applications
  • Excavators
  • Mobile Hydraulics
  • Medium duty hydraulic cylinders

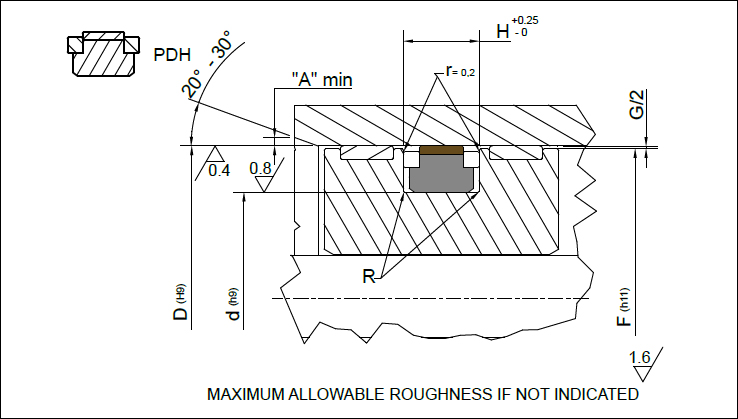

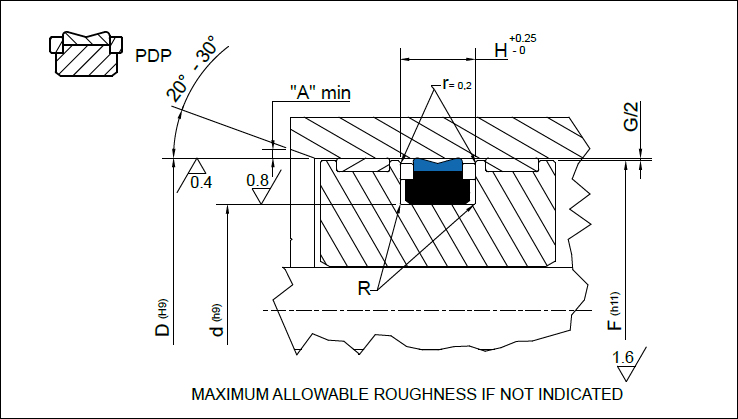

PART NO. REF NO. Housing Dimensions
D d H S F
PDP/PDH. 101* 40.00 30.00 8.00 5.00 39.30
PDP/PDH. 102 50.00 36.00 9.00 5.00 49.30
PDP/PDH. 103* 50.00 40.00 8.00 5.00 49.30
PDP/PDH. 104 55.00 41.00 9.00 5.00 54.30
PDP/PDH. 105 60.00 46.00 9.00 5.00 59.30
PDP/PDH. 106 60.00 50.00 8.00 5.00 59.30
PDP/PDH. 107 63.00 48.00 11.00 5.00 62.30
PDP/PDH. 108* 63.00 53.00 8.00 5.00 62.30
PDP/PDH. 109 65.00 50.00 11.00 5.00 64.30
PDP/PDH. 110 70.00 55.00 11.00 5.00 69.30
PDP/PDH. 111 70.00 60.00 8.00 5.00 69.30
PDP/PDH. 112 75.00 60.00 11.00 5.00 74.30
PDP/PDH. 113 80.00 65.00 11.00 5.00 79.00
PDP/PDH. 114* 80.00 65.00 12.50 5.00 79.00
PDP/PDH. 115 85.00 70.00 11.00 5.00 84.00
PDP/PDH. 116 90.00 75.00 11.00 5.00 89.00
PDP/PDH. 117 90.00 75.00 12.50 5.00 89.00
PDP/PDH. 118 95.00 80.00 11.00 5.00 94.00
PDP/PDH. 119* 100.00 85.00 12.50 5.00 99.00
PDP/PDH. 119/1 105.00 90.00 12.50 5.00 104.00
PDP/PDH. 120 110.00 95.00 12.50 5.00 109.00
PDP/PDH. 121 115.00 100.00 12.50 5.00 114.00
PDP/PDH. 122 120.00 105.00 12.50 5.00 119.00
PDP/PDH. 123 125.00 102.00 16.00 6.50 124.00
PDP/PDH. 124 125.00 110.00 12.50 6.50 124.00
PDP/PDH. 125 130.00 107.00 16.00 6.50 129.00
PDP/PDH. 126 130.00 115.00 12.50 6.50 129.00
PDP/PDH. 127 135.00 112.00 16.00 6.50 134.00
PDP/PDH. 128 140.00 117.00 16.00 6.50 139.00
PDP/PDH. 129 140.00 125.00 12.50 6.50 139.00
PDP/PDH. 130 145.00 122.00 16.00 6.50 144.00
PDP/PDH. 131 150.00 127.00 16.00 6.50 149.00
PDP/PDH. 131/1 150.00 135.00 12.50 6.50 149.00
PDP/PDH. 132 160.00 137.00 16.00 6.50 159.00
PDP/PDH. 133 160.00 145.00 12.50 6.50 159.00
PDP/PDH. 134 165.00 142.00 16.00 6.50 164.00
PDP/PDH. 134/1 170.00 147.00 16.00 6.50 169.00
PDP/PDH. 134/2 170.00 155.00 12.50 6.50 169.00
PDP/PDH. 135 180.00 157.00 16.00 6.50 179.00
PDP/PDH. 136 180.00 165.00 12.50 6.50 179.00
PDP/PDH. 136/1 190.00 167.00 16.00 6.50 189.00
PDP/PDH. 137 190.00 175.00 12.50 6.50 189.00
PDP/PDH. 137/1 200.00 177.00 16.00 6.50 198.80
PDP/PDH. 138 200.00 180.00 16.00 6.50 198.80
PDP/PDH. 138/1 220.00 200.00 16.00 8.00 218.80
PDP/PDH. 138/2 225.00 202.00 16.00 8.00 223.80
PDP/PDH. 139 230.00 210.00 16.00 8.00 228.80
PDP/PDH. 140 250.00 230.00 16.00 8.00 248.80
PDP/PDH. 141 260.00 240.00 16.00 8.00 258.80
PDP/PDH. 142 280.00 260.00 16.00 8.00 278.00
PDP/PDH. 143 290.00 270.00 16.00 8.00 288.00
PDP/PDH. 144 300.00 280.00 16.00 8.00 298.00
PDP/PDH. 145 320.00 295.00 20.00 8.00 318.80
PDP/PDH. 146 400.00 375.00 20.00 8.00 398.80
