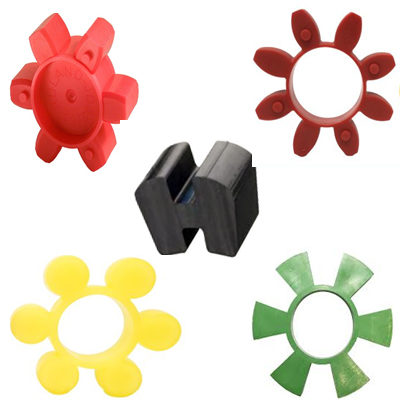

Pu Spider Coupling Spider

PU Coupling
The Shaft Coupling is applied to connect the transmission shaft of varies equipment. It has excellent properties about cushion and energy absorbing, easy to mend, safety in cooperating, wide range of application. Working temperature range from -35 o C to 90 o C, Torque range 22.4 to 2500 N.M
Key features

Easy installation
High processing precision
Standard insert can handle large temperature range from -40 to 80 °C.
High tear and abrasion resistance

Application
Power machineries are mostly connected to working machines by PU spiders to achieve the functional cushioning and vibration-reduction.

TYPE	COLOUR	SIZE			Qty Of Petal
GR-14	RED	30.00	10.00	12.00	4
GR-19	RED	40.00	18.00	14.00	6
GR-24	RED	55.00	27.00	16.00	8
GR-28	RED	65.00	30.00	17.00	8
GR-38	RED	80.00	38.00	22.00	8
GR-42	RED	95.00	46.00	24.00	8
GR-48	RED	104.00	51.00	25.00	8
GR-55	RED	120.00	60.00	27.00	8
GR-65	RED	135.00	68.00	32.00	8
GR-75	RED	160.00	80.00	38.00	10
GR-90	RED	200.00	100.00	42.00	10
GR-100	RED	224.00	111.00	42.00	10
GR-110	RED	250.00	127.00	42.00	10
GR-125	RED	292.00	148.00		10
GR-140	RED	318.00	166.00		10

TYPE	COLOUR	SIZE			Qty Of Petal
MT1	YELLOW	48.00	19.00	12.00	4
MT2	YELLOW	63.00	28.00	18.00	6
MT3	YELLOW	82.00	34.00	18.00	6
MT4	YELLOW	100.00	42.00	20.00	6
MT5	YELLOW	122.00	52.00	25.00	6
MT6	YELLOW	140.00	64.00	30.00	6
MT7	YELLOW	166.00	90.00	30.00	8
MT8	YELLOW	196.00	100.00	35.00	8
MT9	YELLOW	225.00	115.00	35.00	10
MT10	YELLOW	255.00	140.00	45.00	10
MT11	YELLOW	296.00	170.00	50.00	10

TYPE	COLOUR	SIZE			Qty Of Petal
SBT-1	GREEN	40.00	18.00	10.00	6
SBT-2	GREEN	75.00	35.00	15.00	6
SBT-3	GREEN	79.00	40.00	15.00	6
SBT-4	GREEN	94.00	45.00	18.00	6
SBT-5	GREEN	108.00	55.00	24.00	6
SBT-6	GREEN	133.00	60.00	25.00	6
SBT-8	GREEN	154.00	79.00	27.00	6

TYPE	COLOUR	SIZE
GS-7	RED	14.00	-	8.00
GS-9	RED	20.00	7.20	10.00
GS-14	RED	30.00	10.50	13.00
GS-19	RED	40.00	18.00	16.00
GS-24	RED	55.00	27.00	18.00
GS-28	RED	65.00	30.00	20.00
GS-38	RED	80.00	38.00	24.00
GS-42	RED	95.00	46.00	26.00
GS-48	RED	105.00	51.00	28.00
GS-55	RED	120.00	60.00	30.00
GS-65	RED	135.00	68.00	35.00
GS-75	RED	160.00	80.00	40.00

TYPE	COLOUR	MATERIAL
H-95	BLACK	NBR
H-110	BLACK	NBR
H-125	BLACK	NBR
H-140	BLACK	NBR
H-160	BLACK	NBR
H-180	BLACK	NBR
H-200	BLACK	NBR
H-225	BLACK	NBR
H-250	BLACK	NBR
H-440	BLACK	NBR

Other size on request..
